high-strength bolt--Types of screw drive

Description:high-strength bolt--Modern screws employ a wide variety of drive designs, each requiring a different kind of tool to drive in or extract them. The most common screw drives are the slotted and Phillips

Types of screw drive
Modern screws employ a wide variety of drive designs, each requiring a different kind of tool to drive in or extract them. The most common screw drives are the slotted and Phillips; hex, Robertson, and TORX are also common in some applications. Some types of drive are intended for automatic assembly in mass-production of such items as automobiles. More exotic screw drive types may be used in situations where tampering is undesirable, such as in electronic appliances that should not be serviced by the home repair person.

Slot head
Has a single slot, and is driven by a flat-bladed screwdriver. The slotted screw is common in woodworking applications, but is not often seen in applications where a power driver would be used, due to the tendency of a power driver to slip out of the head and potentially damage the surrounding material.

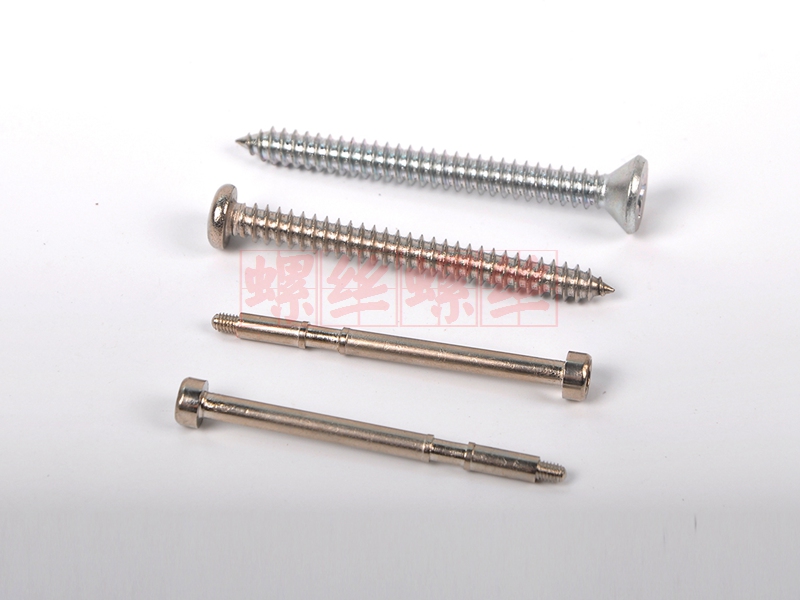

Cross-head, cross-point, or cruciform
has a "+"-shaped slot and is driven by a cross-head screwdriver, designed originally for use with mechanical screwing machines. There are five types:
Has slightly rounded corners in the tool recess, and was designed so the driver will slip out, or cam out, under high torque to prevent over-tightening. The Phillips Screw Company was founded in Oregon in 1933 by Henry F. Phillips, who bought the design from J. P. Thompson. Phillips was unable to manufacture the design, so he passed the patent to the American Screw Company, who was the first to manufacture it.
Reed & Prince or Frearson
Similar to a Phillips but has a more pointed 75° V shape.[citation needed] Its advantage over the Phillips drive is that one driver or bit fits all screw sizes. It is found mainly in marine hardware and requires a special screw driver or bit to work properly. The tool recess is a perfect cross, unlike the Phillips head, which is designed to cam out. It was developed by an English inventor named Frearson in the 19th century and produced from the late 1930s to the mid-1970s by the former Reed & Prince Manufacturing Company of Worcester, Massachusetts, a company which traces its origins to Kingston, Massachusetts, in 1882, and was liquidated in 1990 with the sale of company assets. The company is now in business.
Commonly found in Japanese equipment. Looks like a Phillips screw, but is designed not to cam out and will, therefore, be damaged by a Phillips screwdriver if it is too tight. Heads are usually identifiable by a single dot to one side of the cross slot. The standard number is JIS B 1012:1985
French recess
also called BNAE NFL22-070 after its Bureau de Normalisation de l'Aéronautique et de l'Espace standard number.
patented, similar to cross-head but designed not to slip, or cam out. It has four additional points of contact, and does not have the rounded corners that the Phillips screw drive has. Phillips screwdrivers will usually work in Pozidriv screws, but Pozidriv screwdrivers are likely to slip or tear out the screw head when used in Phillips screws. Heads are marked with crossed, single lines at 45 degrees to the cross recess, for identification. (Note that doubled lines at 45 are a different recess: a very specialised Phillips screw.) Pozidriv was jointly patented by the Phillips Screw Company and American Screw Company in the USA. Developed by GKN in the 1960s, the recess is licenced from Trifast PLC in the rest of the world.
similar to Pozidriv.
a star-shaped "hexalobular" drive with six rounded points. It was designed to permit increased torque transfer from the driver to the bit compared to other drive systems. TORX is very popular in the automotive and electronics industries due to resistance to cam out and extended bit life, as well as reduced operator fatigue by minimizing the need to bear down on the drive tool to prevent cam out. TORX PLUS is an improved version of TORX which extends tool life even further and permits greater torque transfer compared to TORX. A tamper-resistant TORX head has a small pin inside the recess. The tamper-resistant TORX is also made in a 5 lobed variant. These "5-star" TORX configurations are commonly used in correctional facilities, public facilities and government schools, but can also be found in some electronic devices.
an improved "hexalobular" drive for without wobbling and stable stick-fit. TTAP is backward convertible with generic hexalobular (Torx) drive.
Hex socket screwsHexagonal (hex) socket
Has a hexagonal hole and is driven by a hex wrench, sometimes called an Allen key or Hex key, or by a power tool with a hexagonal bit. Tamper-resistant versions with a pin in the recess are available. Hex sockets are increasingly used for modern bicycle parts because hex wrenches are very light and easily carried tools. They are also frequently used for self-assembled furniture.
Invented in 1908 by P.L. Robertson, has a square hole and is driven by a special power-tool bit or screwdriver. In the United States it is referred to as square drive. The screw is designed to maximize torque transferred from the driver, and will not slip, or cam out. It is possible to hold a Robertson screw on a driver bit horizontally or even pendant, due to a slight wedge fit. Commonly found in Canada in carpentry and woodworking applications and in Canadian-manufactured electrical wiring items such as receptacles and switch boxes. It is increasingly used in the United States for woodworking applications.
Has a triangular slotted configuration. They have been used by Nintendo on several consoles and accessories, including the Game Boy, Wii, and Wii Remote, and by Nokia on some phones and chargers to discourage home repair.
Torq-Set or offset cruciform
May be confused with Phillips; however, the four legs of the contact area are offset in this drive type. This type is commonly used in the aerospace industry.
Uses two round holes opposite each other, and is designed to prevent tampering. Commonly seen in elevators in the United States. Note that in the UK, "spanner" is the usual word for "wrench".
Clutch Type A or standard clutch
Resembles a bow tie. These were common in GM automobiles, trucks and buses of the 1940s and 1950s, particularly for body panels.
Clutch Type G
Resembles a butterfly. This type of screw head is commonly used in the manufacture of mobile homes and recreational vehicles.

Combination drives
Some screws have heads designed to accommodate more than one kind of driver, sometimes referred to as combo-head or combi-head. The most common of these is a combination of a slotted and Phillips head, often used in attaching knobs to furniture drawer fronts. Because of its prevalence, there are now drivers made specifically for this kind of screw head. Other combinations are a Phillips and Robertson, a Robertson and a slotted, a Torx and a slotted, and a triple-drive screw which can take a slotted, Phillips or a Robertson. The Recex drive system claims it offers the combined non-slip convenience of a Robertson drive during production assembly and Phillips for after market serviceability. Quadrex is another Phillips/Robertson drive. Phillips Screw Company offers both Phillips and Pozidriv combo heads with Robertson.
